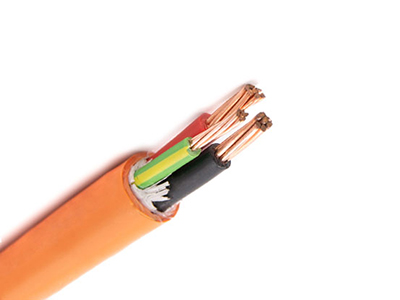

DESCRIPTION
APPLICATION
zingwe izi ntchito magetsi otsika voteji dongosolo unsembe, ndi oyenera unsembe m'nyumba ndi panja, mu ma ducts chingwe, mobisa, mu mphamvu ndi masinthidwe siteshoni, magawidwe mphamvu m'deralo, zomera mafakitale, kumene palibe chiopsezo mawotchi kuwonongeka. .
Miyezo:
Chithunzi cha DIN 0276-603
Chithunzi cha DIN 0276-627
GB/12706-2008, IEC60502-1, IEC 60228, IEC60332, BS 6346, AS/NZS 5000.1 etc.
Chithunzi cha DIN 0276-627
GB/12706-2008, IEC60502-1, IEC 60228, IEC60332, BS 6346, AS/NZS 5000.1 etc.
Zida Zamalonda
Kutentha kozungulira kwa unsembe: ≥0 ℃
Kutentha kwakukulu kwa conductor pakugwira ntchito bwino: ≤70 ℃
Kutentha kwakukulu kwa ntchito ya con. Pamene chingwe chachifupi-circuited (5s pazipita nthawi): 160 ℃
Malo opindika ochepa ovomerezeka:
Chingwe chimodzi chosakhala ndi zida: (20D±5%)mm
Chingwe chopanda zida zambiri: (15D ± 5%) mm
Chingwe chimodzi chokhala ndi zida: (15D ± 5%)mm
Chingwe chokhala ndi zida zingapo: (12D ± 5%) mm
Chidziwitso: D=kupitilira chingwe cha diameter
Kutentha kwakukulu kwa conductor pakugwira ntchito bwino: ≤70 ℃
Kutentha kwakukulu kwa ntchito ya con. Pamene chingwe chachifupi-circuited (5s pazipita nthawi): 160 ℃
Malo opindika ochepa ovomerezeka:
Chingwe chimodzi chosakhala ndi zida: (20D±5%)mm
Chingwe chopanda zida zambiri: (15D ± 5%) mm
Chingwe chimodzi chokhala ndi zida: (15D ± 5%)mm
Chingwe chokhala ndi zida zingapo: (12D ± 5%) mm
Chidziwitso: D=kupitilira chingwe cha diameter
ZOCHITIKA
Low Voltage
Ntchito Kutentha 70 ℃
KULIMBIKITSA
-
Kondakitala:chooneka: RE = chozungulira, CC = chozungulira chozungulira, SM = gawo lozungulira
Chozungulira chozungulira, chophatikizika kapena chopangidwa ndi mkuwa kapena aluminiyamu, chogwirizana ndi IEC60228 CLAss 1 kapena Class 2 -
Malingaliro:PVC Compound Insulation
-
Chizindikiritso chamtundu:1 Core: Red kapena Black
2 Cores: Red, Black
3 Cores: Red, Yellow, Blue
4 Cores: Red, Yellow, Blue, Black
5 Cores: Red, Yellow, Blue, Black, Green
Pamwamba pa 5 Cores: Black Cores yokhala ndi manambala oyera
Kuzindikiritsa pamwambapa kungasinthidwe ngati dongosolo -
Zogona/Zamkati:Chithunzi cha PVC
-
Zindikirani::Zida zokhala ndi zida za chingwe chimodzi chapakati ziyenera kukhala zopanda maginito kapena maginito ochepetsedwa. Nthawi zambiri, chingwe chimodzi chokha chokhala ndi zida (chomwe chimagwiritsa ntchito chingwe chachitsulo kapena chachitsulo) chimangogwira ntchito pazochitika za DC.
CHITSANZO
- Core limodzi
- Makina a 2
- Makina a 3
- Makina a 4
| Type | Dera lodziwika bwino mm2 |
Mdulidwe wa conductor mm |
Mwadzina makulidwe a kutchinjiriza mm |
Mwadzina m'chimake makulidwe mm |
Pafupifupi. m'mimba mwake mm |
Pafupifupi.kulemera kwa chingwe kg/km |
Maximum DC kukana kwa conductor Ω/km |
||
| Cu | Al | 20 ℃ Ku | 20 ℃ Al | ||||||
| NYY AYI |
1 × 1.5 RE 1 × 2.5 RE 1 × 4 RE 1 × 6 RE 1 × 10 CC |
1.38 1.78 2.24 2.76 3.8 |
0.8 0.8 1.0 1.0 1.0 |
1.4 1.4 1.4 1.4 1.4 |
5.8 6.2 7.1 7.6 8.6 |
49.3 62.2 86.4 109.8 156.7 |
- 46.6 61.6 72.6 94.8 |
12.1 7.41 4.61 3.08 1.83 |
- 12.1 7.41 4.61 3.08 |
| 1 × 16 CC 1 × 25 CC 1 × 35 CC 1 × 50 CC 1 × 70 CC |
4.8 6.0 7.0 8.4 10.0 |
1.0 1.2 1.2 1.4 1.4 |
1.4 1.4 1.4 1.4 1.4 |
9.6 11.2 12.2 14.0 15.7 |
221.0 324.1 426.8 586.0 787.5 |
122.0 169.4 210.2 276.6 354.4 |
1.15 0.727 0.524 0.387 0.268 |
1.91 1.20 0.868 0.641 0.443 |
|
| 1 × 95 CC 1 × 120 CC 1 × 150 CC 1 × 185 CC 1 × 240 CC |
11.5 13.0 14.5 16.2 18.4 |
1.6 1.6 1.8 2.0 2.2 |
1.5 1.5 1.6 1.7 1.8 |
17.7 19.3 21.3 23.6 26.4 |
1050.5 1298.2 1611.6 1977.4 2537.7 |
462.7 555.7 683.6 832.8 1052.9 |
0.193 0.153 0.124 0.0991 0.0754 |
0.320 0.253 0.206 0.164 0.125 |
|
